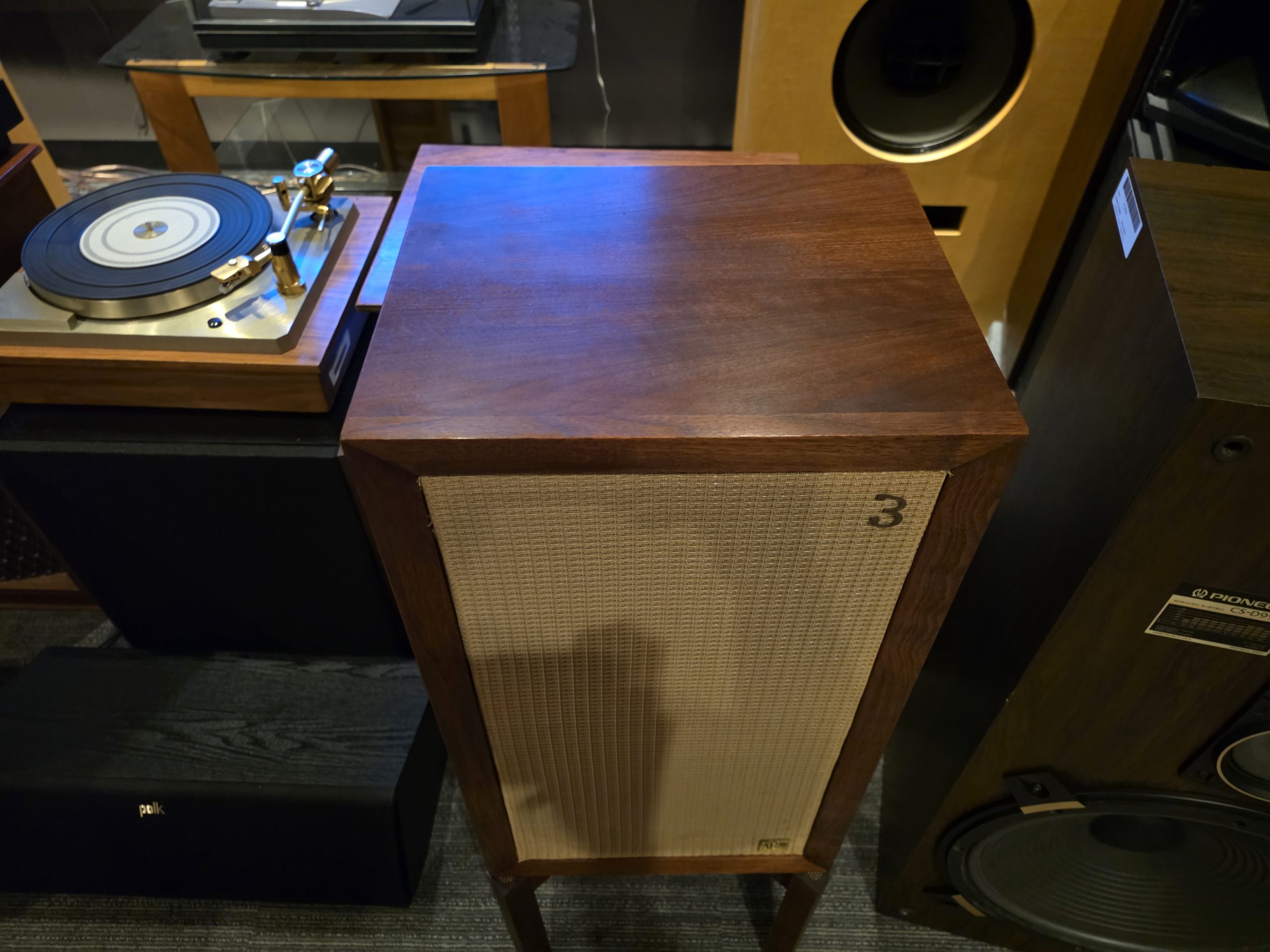

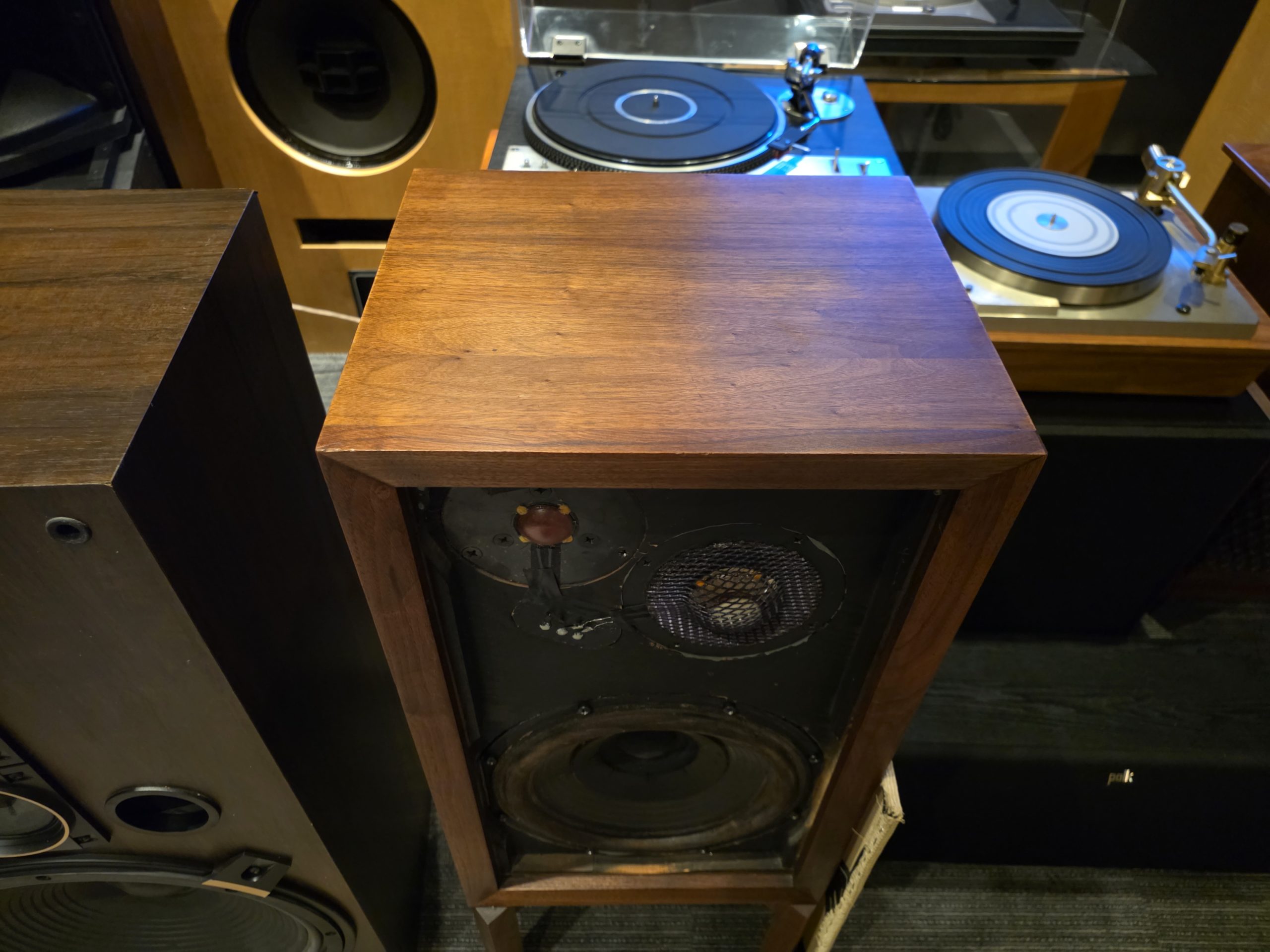

AR-3 is a legendary, highly collectible 3-way acoustic suspension speaker system produced by Acoustic Research in the late 1950s and 1960s. Designed by audio pioneers Edgar Villchur and Henry Kloss, it was the first commercial loudspeaker to utilize a dome midrange and tweeter, making it a landmark piece of audiophile history.
Key Specifications & Design

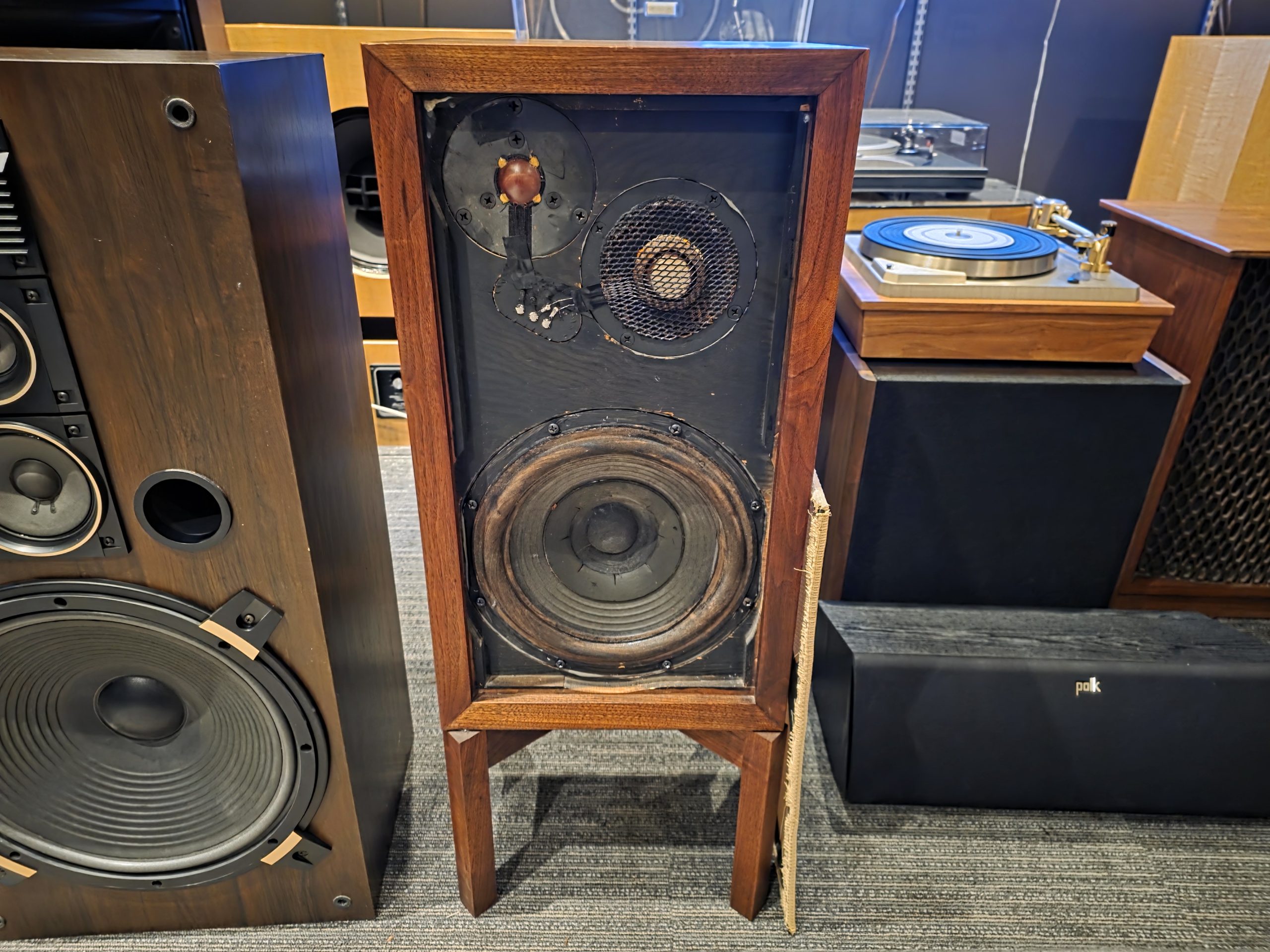

Driver Configuration: Features a 12-inch acoustic suspension cone woofer, a 1.5-inch dome midrange, and a 0.75-inch dome tweeter.
Enclosure Type:Airtight, sealed cabinet filled with fiberglass. It uses the elasticity of the trapped air inside as a “spring” to provide the restoring force for the woofer, resulting in remarkably flat and accurate low-end response.
Cabinet Dimensions: Approximately 25″ x 14″ x 11.5″, weighing a hefty 46 to 47 lbs each.
Finishes: Primarily built with real wood veneers like Oiled Walnut, Mahogany, or Cherry.
